Type: Supply / Return Ceiling Diffuser
Throw: Two way Corner

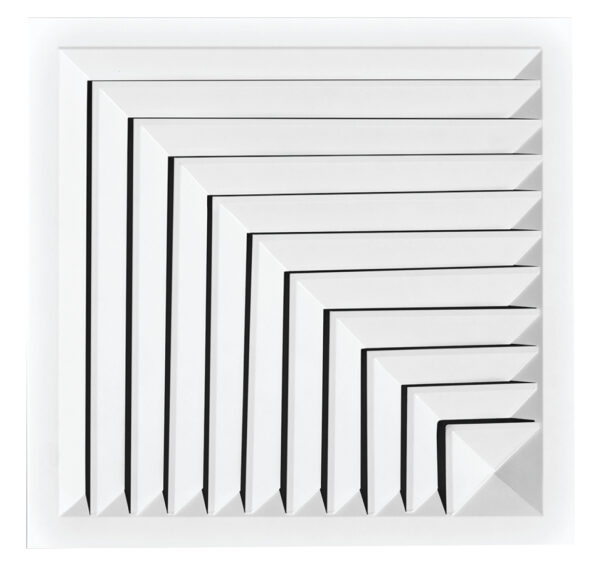

Model: SAD-AB-12C; RAD-AB-12C
Construction: Aluminium
Diffuser frame and core are made of high quality extruded aluminium profiles and discharges air in either way as per blade arrangement.
Diffuser core is fixed to the frame using aluminium pins, which are removable to provide access for damper adjustment. The opposed blade damper is rigidly fixed to the frame by spring clips and is screw operated from the face opening of the diffuser. Nylon bushes are installed between blade and frame for rattle free operation.
Data
Standard Construction Details
Frame
Extruded aluminium profile with 33 mm flange width.
Core
Die punched single piece sheet.
Damper
Opposed Blade Damper with extruded aluminium frame and blade operated with screw.
Bushes
Nylon.
Finish
Available with RAL powder coating, please specify color.
Optional Fittings
Plenum Chamber
Plenum is available with circular, square or rectangular spigots in either top or side entry applications.
Neck Reducer (R)
Neck reducers are available with circular, square or rectangular spigots in top entry only.
Foam Gasket
Provided all around the frame, to prevent leakage of air.
Damper Finish
Black matte.
Finish
Mill finish or Chrome plating.
Frame and Core
Avialable in Stainless Steel (304/316L).
Note:
Available in rectangular sizes & are suitable for flush mounting in lay-in type ceiling.
SAD – Supply Air Diffuser (with Damper) & RAD – Return Air Diffuser (without Damper)
