Type: Egg Crate Grille
Model : ECG-AB-11
Deflection: Single
Construction: Aluminium

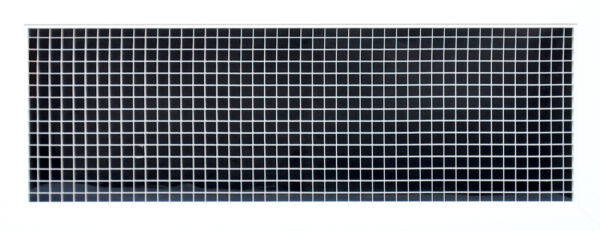

BETEC CAD. model ECG-B11 is an Egg-Crate type Return air grille .The Egg Crate square core pattern is of aluminium construction providing maximum free area.
The frame and blade are constructed from high quality aluminum extruded profiles. Aluminium egg crate core of 12.5 mm x 12.5 mm x 12.5 mm size is fixed rigidly to the
frame.The Horizontal and vertical vanes are provided with nylon bushes for rigid and rattle free operation.
Designed for return and exhaust applications.
Data
Standard Construction Details
Frame
Extruded aluminium profiles with 27 mm Flange width.
Egg Crate Core
12.5 x 12.5 x 12.5 mm aluminium grid.
Finish
Available with RAL powder coating, please specify color.
Optional Fittings
Foam Gasket
Provided all around the frame, to prevent leakage of air.
Damper
Opposed Blade Damper with extruded aluminium frame and blade operated with screw.
Damper Finish
Black matte.
Filter
Aluminium media Filter.
Finish
Mill finish or Chrome plating.
Frame and Blades
Available in Stainless steel (304/316L).
