Type: Extract Air Grille
Model : EAG-AB-11
Deflection: Single
Construction: Aluminium

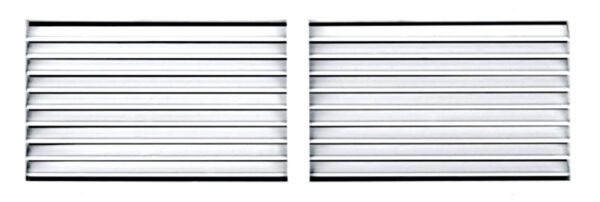

BETEC CAD. model EAG-B11 is an Extract air grille with fixed horizontal aerofoil blades at a 45° angle.
The frame and blades are of high quality extruded aluminum profiled construction.
Deflection blades are fixed rigidly to the frame at an angle of 45° to the horizontal plane.
Data
Standard Construction Details
Frame
Extruded aluminium profiles with 30 mm flange width.
Blades
Extruded Aluminium aerofoil blades.
Blade Spacing
Standard Blade Spacing of 20 mm.
Finish
Available with RAL powder coating, please specify color.
Optional Fittings
Flange
25 mm Flange width.
Foam Gasket
Provided all around the frame, to prevent leakage of air.
Damper
Opposed Blade Damper with extruded aluminium frame and blade operated with screw.
Damper Finish
Black matte.
Filter
Aluminium media Filter.
Finish
Mill finish or Chrome plating.
Frame and Blades
Available in Stainless steel (304/316L).
