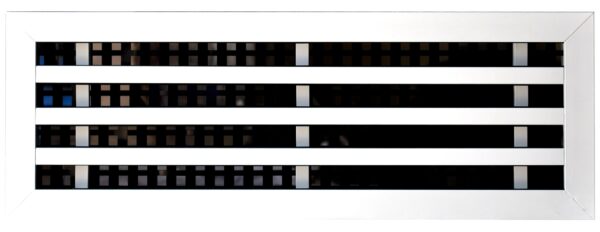

Type: Supply Linear Slot Diffusers
Model : SLSD-AB-21-S-x
Slot width (S) : 16 / 20 / 25* mm; No. of Slots (x) : 1 to 8
Construction: Aluminium
Slot diffuser frame and deflection blades are made of extruded aluminium profiles. Air diffusion pattern can be varied for horizontal airflow along the ceiling, vertically downwards flow or intermediate flow.
The defelecting vanes and integral volume damper (hit and miss damper) can be adjusted from the face of the diffuser. Slot diffusers are suitable for installations in ceiling and sill.
Data
Standard Construction Details
Frame
Extruded Aluminum profile.
Deflection Blades
Extruded Aluminum profile.
Damper
Galvanized steel hit and miss damper with black matte finish.
Slot Width
25 mm.
Number of Slots
1,2,3,4,5,6,7,8.
Finish
Available with RAL powder coating, please specify color.
Optional Fittings
Plenum chamber
Plenum is available with circular, square or rectangular spigots in either top or side entry applications.
Slot width
16 & 20 mm.
Foam Gasket
Provided all around the frame, to prevent leakage of air.
Finish
Mill finish or Chrome plating.
