Type: Return Air Grille
Model : RAG-AB-11H/V
Deflection: Single
Construction: Aluminum
H – Front Horizontal; V – Front Vertical

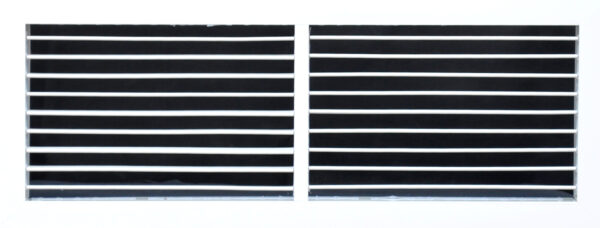

BETEC CAD. model RAG-AB-11H is a single deflection return air grille, with one set of horizontal aerofoil blades and model RAG-AB-11V, with one set of vertical aerofoil
blades.
The frame and blade are constructed from high quality aluminum extruded profiles. The blades in these models are individually adjustable to any degree of deflection. The Horizontal and vertical vanes are provided with nylon bushes for rattle free operation.
Data
Standard Construction Details
Frame
Extruded aluminium profiles with 30 mm flange width.
Blades
Extruded Aluminium aerofoil blades.
Blade Spacing
Standard Blade Spacing of 20 mm.
Finish
Available with RAL powder coating, please specify color.
Optional Fittings
Flange
25 mm Flange width.
Foam Gasket
Provided all around the frame, to prevent leakage of air.
Damper
Opposed Blade Damper with extruded aluminium frame and blade operated with screw.
Damper Finish
Black matte.
Filter
Aluminium media Filter.
Finish
Mill finish or Chrome plating.
Frame and Blades
Available in Stainless steel (304/316L).
