Type: Square and Rectangular
Blade Type: 3V Single Skin , Galvanized Construction
Blade Operation: A-Parallel, B-Opposed, C-Gear Opposed
Construction: Galvanized Iron / Aluminum / Stainless Steel

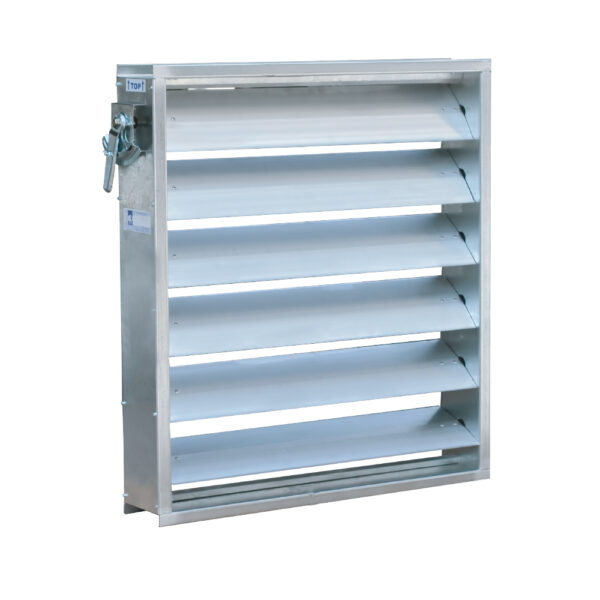

BETEC CAD. B-10 Series volume control dampers are square and rectangular type with parallel or opposed blade operation having Aerofoil double skin blade design. These dampers are subjected to medium pressure applications to achieve efficient and uniform air distribution.
The square and rectangular type VCD’s are designed for handling maximum air capacities at minimum pressure drop.
Data
Damper Performance Ratings
Operating Pressure – 4”w.g(1000Pa.)Max.
Leakage – Class-III(ReferAMCA500D)
Velocity – 1500fpm(7.5m/s).
Standard Construction
Frame
6’’x1.18” x 18gauge (150 x 30 x 1.2mm)thick roll formed galvanized steel ‘C’ Channel with Embossed type for low leakage application.
Blades
6” (152 mm) wide, 1 mm (18 gauge) thick extruded
aluminum aerofoil type.
Bushes
Nylon.
Mechanical Linkage
Galvanized steel linkages concealed in the frame.
Axles
12mm square galvanized steel.
Quadrant
Heavy gauge galvanized steel with position indications Shut, 1/4, 1/2, 3/4, Open.
Gasket
Neoprene/foam gasket.
Optional Fittings
Gear Wheel
Gear wheels are of heat resistant Nylon placed with in the frame instead of mechanical linkage for rattle free smooth operation, operated with PVC knob/Quadrant.
Bushes
Brass/Bronze/StainlessSteel.
Axles
12mm diameter galvanized steel.
Transitions
Neck adapt or for round duct connections.
Alphabet indicates the type of blade operation
A-Parallel Blade
B-Opposed Blade
C-Gear Opposed Blade
Optional Construction
Frame :Thickness upto 1.5mm
Frame Depth :130 mm Optional
Blade :Thickness upto 1.2mm
Blade Width :Upto 150 mm
Frame Type :SNC
Frame and Blade Material :Stainless Steel(304/316L)
:Aluminium
Note:
Increments of 2” (50mm) possible with combination of 4’’6’’blade width.
Maximum single module size is 48”x48” (1200x1200mm).
Damper, width W > 48” (1200mm) or H > 48” (1200mm), is provided with a center mullion partition.
Dampers of size W or H > 800 mm will have two side linkage.
